Wire mess

I thought I had the plan clear in my head. first 6 wires was easy. or so I thought. Realized when I started with the other six I was wrong. On this pic only a few are connected and the second toroid going on top is not even there.


So.. just to start all over again.

Posted in Ham radio | Leave a comment

Results of the evening

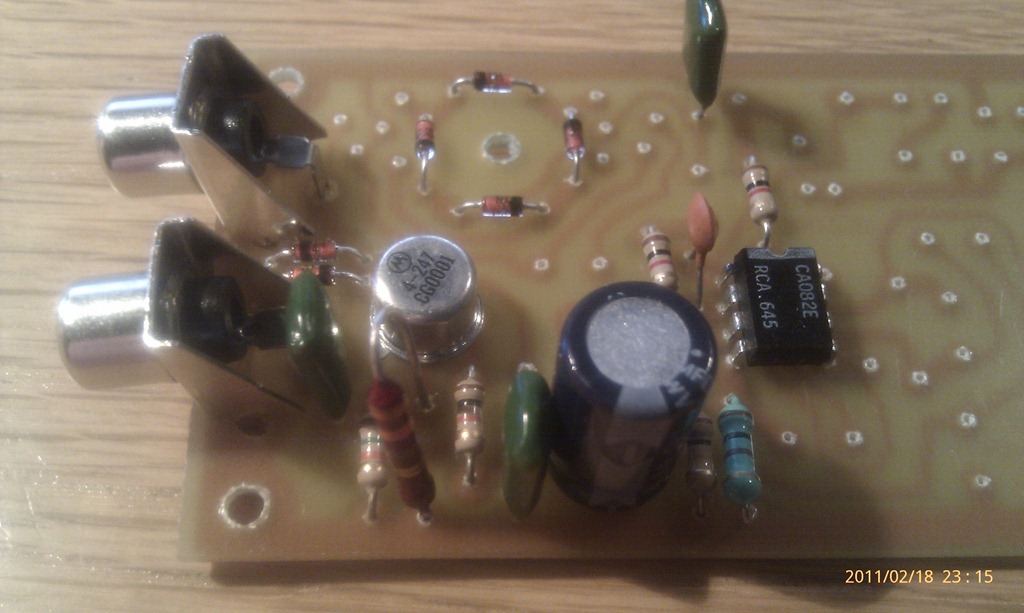

Had to start all over again with the receiver. Had the wrong version of PCB layout. A bit easier with the new one. More room for the coils in the ring diode mixer.

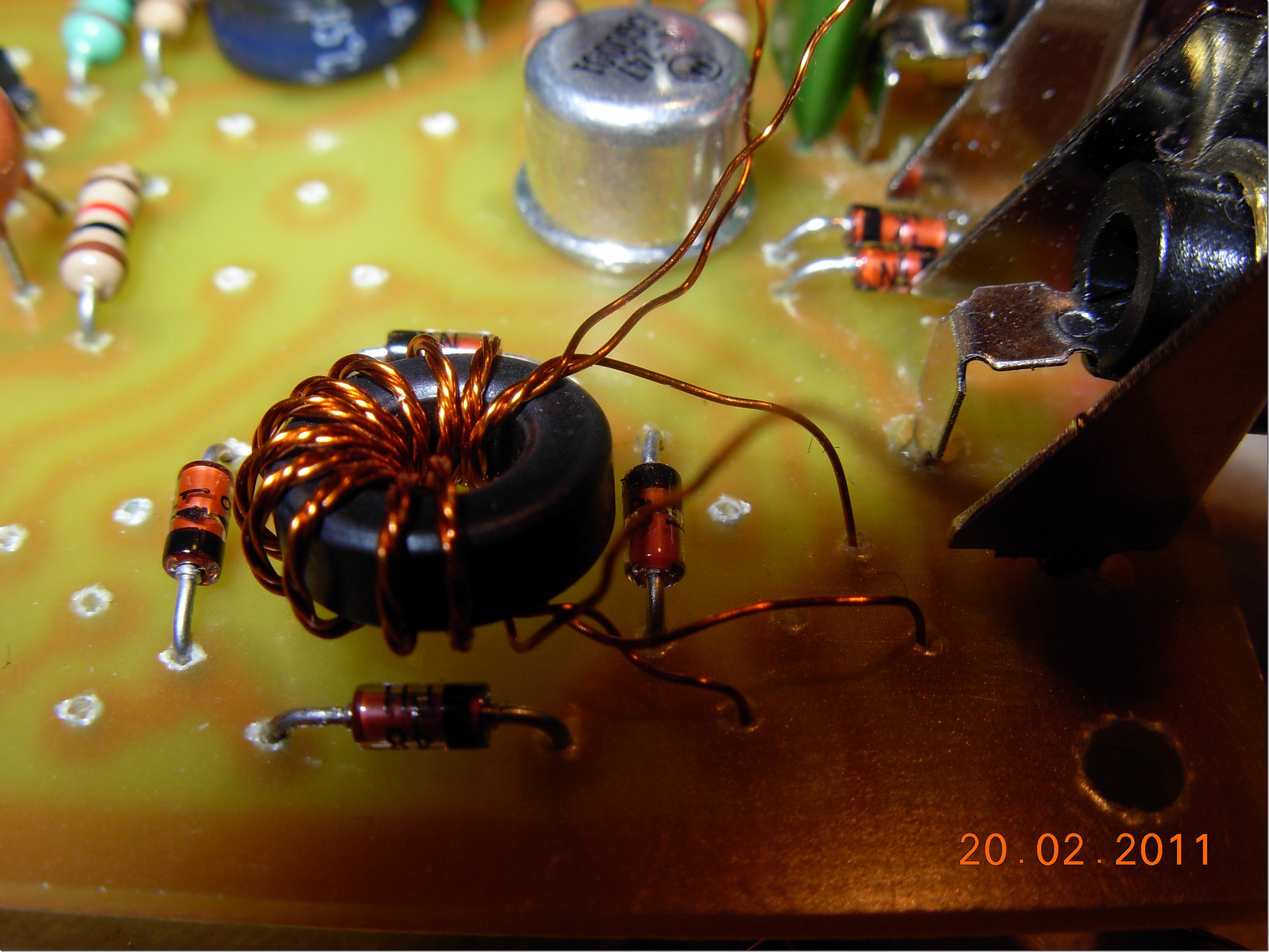

Started with a new card and new components so now Im back where I was before. Tomorrow the coils will be mounted on the card. A LOT of tiny wires. And somehow I have a feeling they must be in the correct hole.. 12 of them.

At least its a start. Hopefully smoke test of the receiver part on tuesday.


Posted in Ham radio | Leave a comment

Oscillating on 3,555 MHz


Nice to get a proof its working.

Posted in Ham radio | Leave a comment

Oscillator oscillating

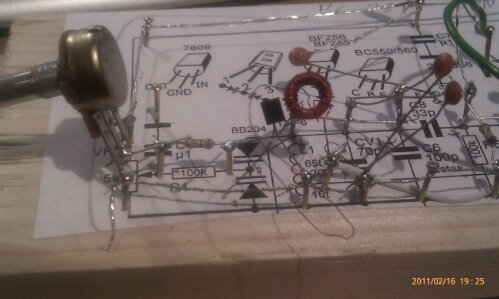

Have it working from 3.45 to 3.55 MHz. Needs some adjusting.

Posted in Ham radio | Leave a comment

New story added

Have added a story I wrote about the light house activity 2010. Unfortunately only in swedish

Posted in Ham radio | Leave a comment

Test setup

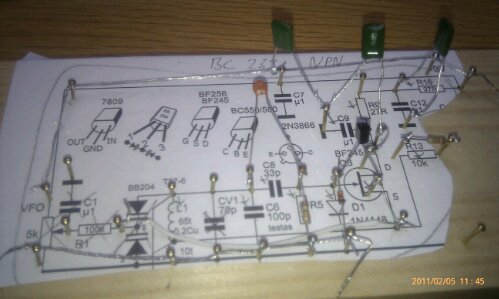

The test setup of the oscillator starts to take form. Smoke test tomorrow.

Posted in Ham radio | Leave a comment

How I spent my evening

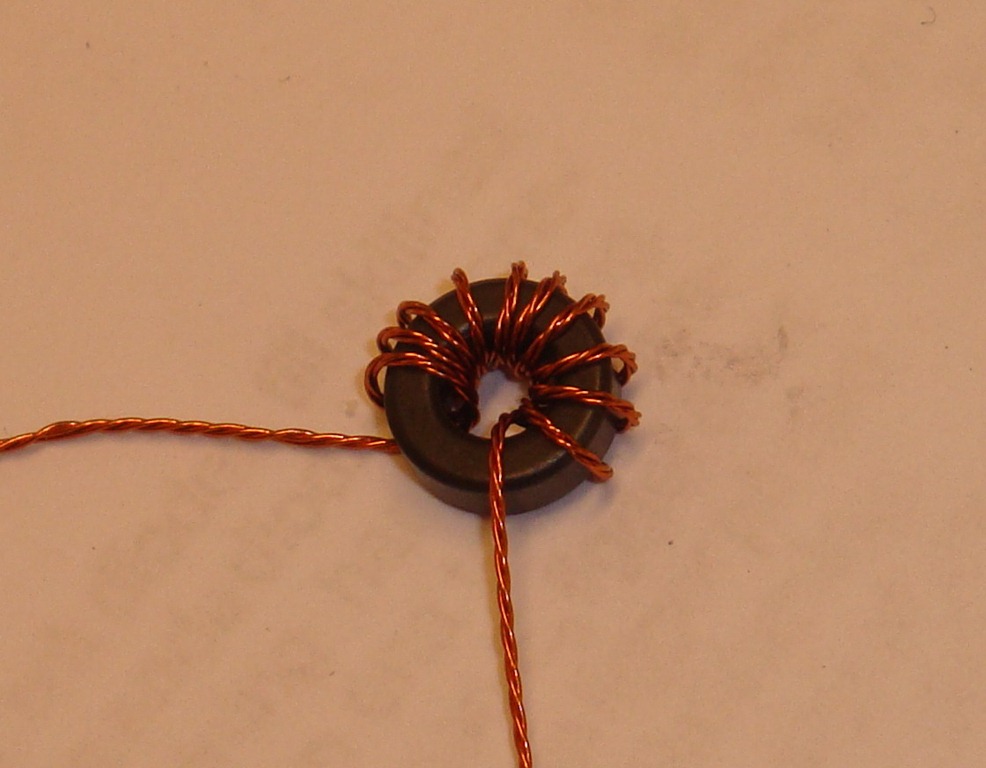

We are building our own 80m trancievers at the radio club. Yesterday I spent the evening twisting cable and winding the torroids for the ring diode mixer in the receiver.


Posted in Uncategorized | Leave a comment



Will be fun to see what we can create from this mess…

Posted in Ham radio | Leave a comment
